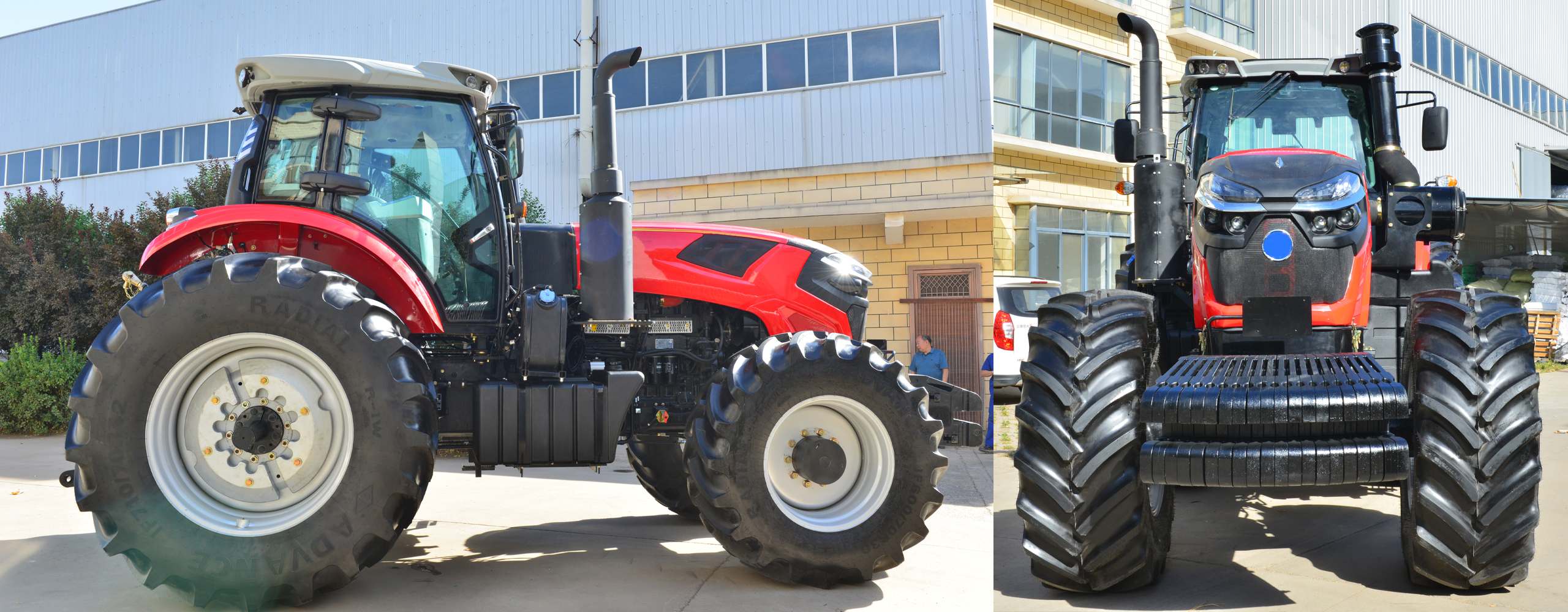

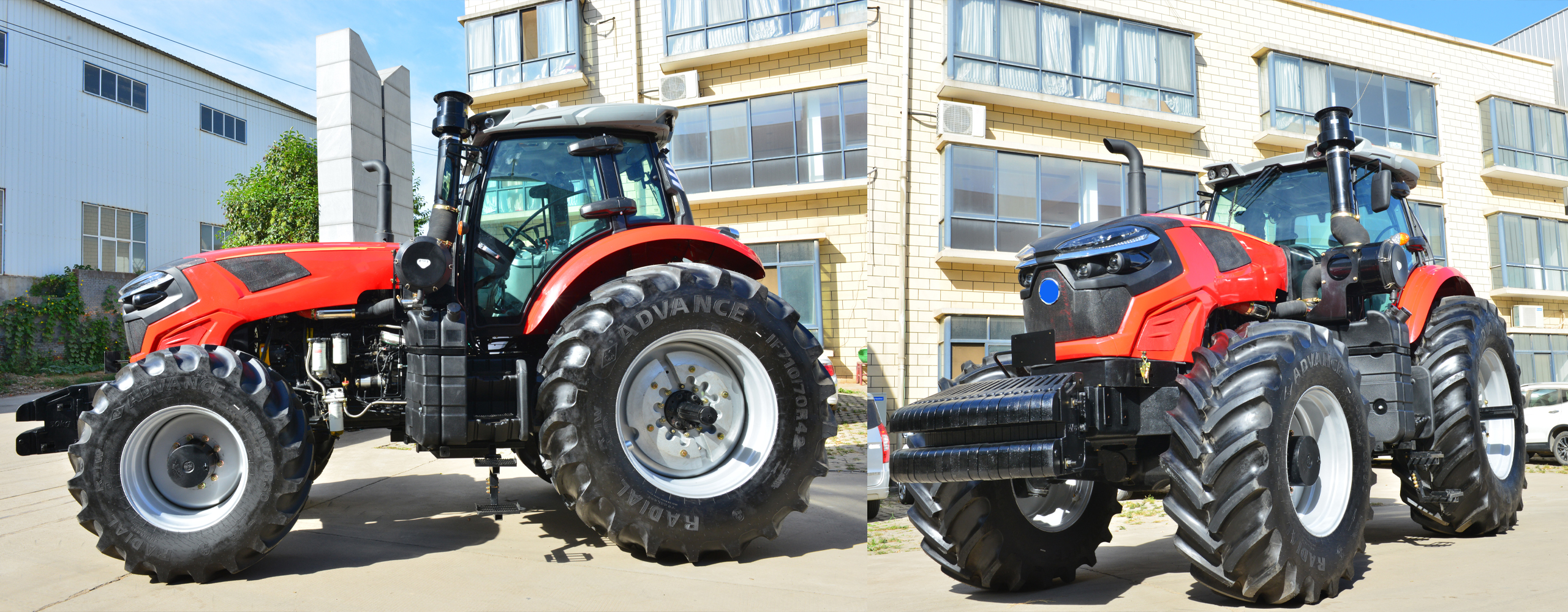

340HP Wheel Agricultural Tractor KF 9000
-
The New KF 9000 Series is aimed at customers looking for a New touch of high horse power and a precision farming tractor with inspired design and optimised efficiency.
This series HP tractor can provide strong power and high efficiency for large farms.
products profile
products details
- Large modulus gear, gear pair center distance, large chassis transmission reliability is high.
- Luxury cab, Grammer seat, high comfort.
- 16-inch double-acting clutch, hydraulic booster, German LUK friction plate, combined with stable and reliable separation.
- 18F+6R gear, the gear matching is reasonable and the gear shifting is stable and reliable.
- Four sets of hydraulic output, independent clutch booster gear pump, the hydraulic system is more stable.
Technical parameters
| Model | KF 9000 | |
| Engine | Model | YTN9380-40 |
| Calibration power (kW) / calibration speed (r/min) | 250/2200 | |
| Engine intake method | Turbocharged | |
| Number of cylinders and structure type | 6 cylinders, in-line, water-cooled, direct injection, four-stroke | |
| Air filter type | Dry | |
| Fuel tank capacity (L) | 900 | |
| Type of fuel injection system | High pressure common rail | |
| Power output | Rated power of power output shaft (kw) | ≥212.5 |
| Number of splines and power output speed (r/min) | 8 keys, 540/1000 | |
| Transmission system | Standard gear (forward/reverse) | 18/6 |
| Maximum traction force(kN) | ≥89.8 | |
| Hydraulic | Lift pump displacement (mL/r) | 40 |
| Steering pump flow(L/min) | 20 | |
| Maximum Lifting Force(kN) | ≥60 | |
| Appearance Dimensions Weight | Length x width x height (mm) | 6290x2980x3450 (top of air filter) |
| Wheelbase (mm) | 3390 | |
| Front track(mm) | 1870 | |
| Rear track(mm) | 2030 | |
| Minimum ground clearance (mm) | 580 (at the bottom of the tongue frame) | |
| Minimum use quality (kg) | 10890 | |
| Tire Model (Front/Rear) | 600/70R30, 710/70R42 | |
