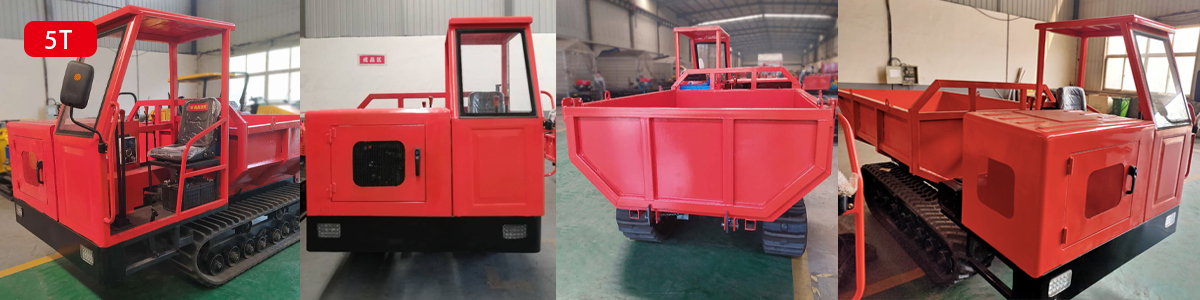

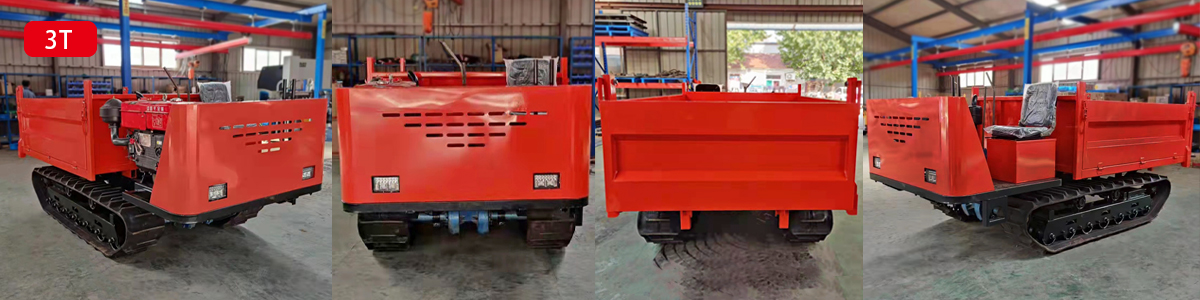

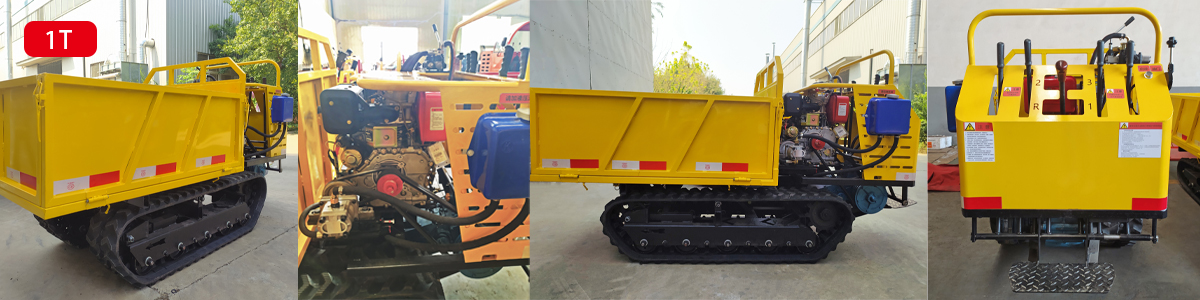

Crawler Transporter 1T 3T 5T
-
Crawler Transporter truck solves the time-consuming and laborious problem of manual transportation. It not only improves the efficiency of agricultural production, but also transports the fruits to the market at a faster speed, which greatly improves the economic benefits of fruit farmers.
products profile
Crawler Transporter Features：
1. Simple operation, low load-bearing ground pressure, capable of handling deep mud pits and pools, and complex stone roads.
2. Tracked vehicles can easily pass through narrow mountains, rocks, woodlands, and buildings.
3. The turning radius is small, adapting to narrow sites and reducing the cost of road construction.
4. Equipped with electric starter, centralized handle and convenient operation.
5. Great traction, good climbing performance and strong transportation capacity.
products details
Crawler Transportertruck solves the time-consuming and laborious problem of manual transportation. It not only improves the efficiency of agricultural production, but also transports the fruits to the market at a faster speed, which greatly improves the economic benefits of fruit farmers.
Technical parameters
| Model | 1T | 3T | 5T |
| Horse Power | 11 | 32 | 50 |
| Rated load | 1200kg | 3000kg | 5000kg |
| Self weight | 580kg | 1550kg | 1900kg |
| Overall Dimension(mm) | 2200*950*1300 | 3420*1630*1400 | 4000*1700*1550 |
| Car size | 1350*950*500 | 2200*1570*650 | 2500*1650*650 |
| Track Standard | Engineering Rubber Track | Engineering Rubber Track | Engineering Rubber Track |
| Track specifications | 230*72*46 | 350*90*56 | 400*90*62 |
| Car ground clearance | 450mm | 650mm | 650mm |
| Gear position | 3F+1R | 3F+1R | 3F+1R |
| Maximum travel speed | 12km/h | 18km/h | 20km/h |
| Uphill angle | 40° | 40° | 40° |
| Start mode | Electric start/hand pull | Electric start | Electric start |
| Engine Brand | Changchai 188 | Changchai 32 | Changchai 490 |
| Cylinder | 1 | 1 | 4 |
| Engine cooling method | Air-cooled | Water cooling | Water cooling |
| Dump function | Hydraulic dump | Hydraulic dump | Hydraulic dump |
| Gearbox brand | Yunzhou gearbox | Yunzhou gearbox | Yunzhou gearbox |
| Gearbox model | 18# | 21# | 21#enhanced |
