5.7HP Ditching and Ridging Power Tiller

5.7HP Ditching and Ridging Power Tiller

  • Function: Ditching and Earth up;


    Application: Vegetable field, Garden and Tobacco field, etc.

products profile

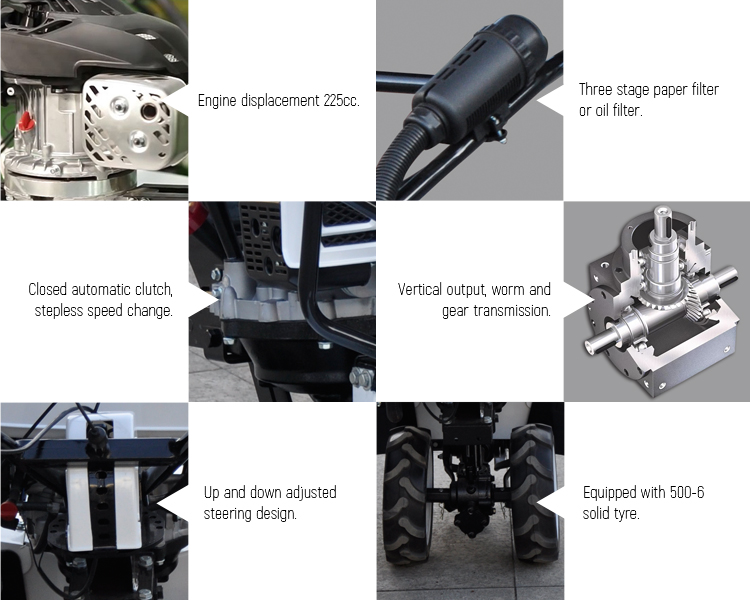

1. With 225CC powerful engine, and overhead big fuel tank;
2. Paper three stage filter or oil filter;
3. Closed automatic clutch, infinitely variable speeds;
4. Vertical output, worm and gear transmission;
5. Equipped with 500-6 solid tire;
6. Up and down adjusted steering design;
7. Upgrade engine hood to “Bentley “model.

products details

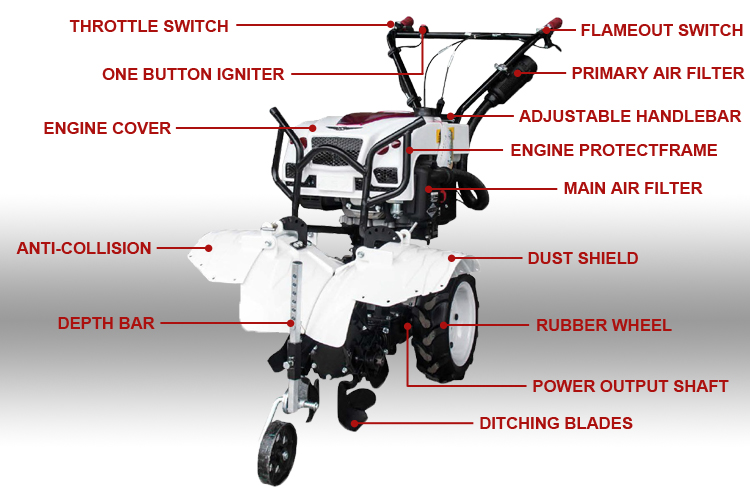

5.7HP Ditching and Ridging Power Tiller

5.7HP Ditching and Ridging Power Tiller

5.7HP Ditching and Ridging Power Tiller

The power tiller has the characteristics of light weight, small size and simple structure. It is widely used in dry land, paddy field and orchard in plains, mountains and hills. It is convenient for users to use and store, and avoid the trouble that large agricultural machinery can't enter the mountains.

The micro tillage machine has the following advantages:

1. Small size, light weight, convenient operation, saving time and effort when working;

2. Rugged and durable. The micro-tiller is a cast steel box, which has the advantages of good rigidity, no deformation, high precision, and long practical life;

3. Multi-functions, rotary tillage, deep tillage, ditching, ridge formation, intertillage weeding, sowing and fertilization, spraying, pumping, transportation and many other agronomics. The micro tillage machine has truly realized one machine with multiple functions, spending the same money, and doing multiple thing;

4. Good economic performance, reasonable transmission ratio, 10% energy saving than traditional tiller under the same working environment;

5. The width of the wheel is adjustable, the handle is up and down, and the left and right are adjustable, which can be suitable for different working environments;

6. Practical scope-greenhouses, mountainous hills, dry land, paddy fields, etc.

Technical parameters

Main Parameter Value
Matched power 4.2 kw
Weight 75 kg
Overall dimension 1950×700×840 mm
Economical fuel consumption 6.8-8.8 L/acre
Working width 330 mm
Ditching depth 100-200 mm
Ridging height 180 mm
Working speed 1.8-2.8 km/h
Efficiency 0.2-0.3 acre/h
