5.4HP Multi Function Power Tiller

5.4HP Multi Function Power Tiller

  • Function: Tiling, weeding, Ditching, Earth up, Ridging, Spraying, Fertilizing, Seeding, Swathing and plastic Mulching.


    Application: Garden, Tea field, Mulberry field, Tobacco field, Greenhouse, Terraced fields and Paddy field.

products profile

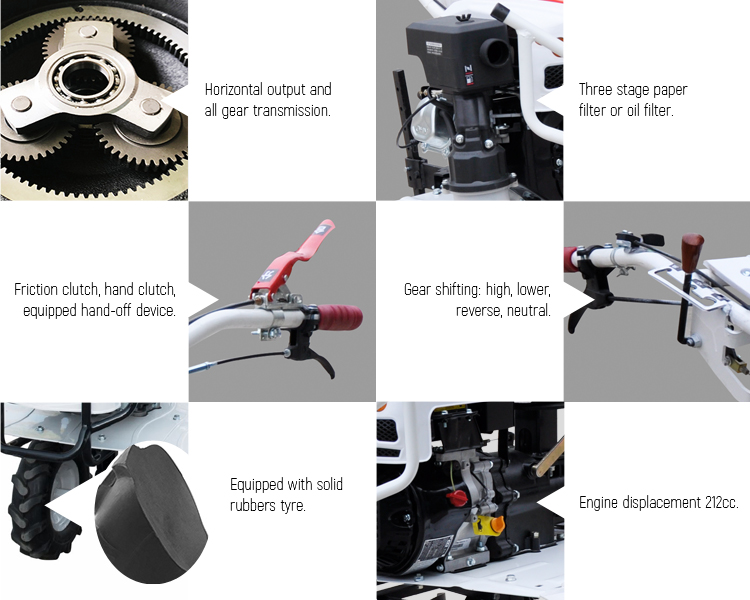

1. Engine displacement 212cc;
2. Three stage paper filter or oil filter;
3. Friction clutch, hand clutch, equipped hand-off device;
4. Horizontal output and all gear transmission;
5. Equipped with 350-6 solid tyre;
6. Up and down, left and right adjusted steering design, easy operation;
7. Gear shifting: high, lower, reverse, neutral;
8. Equipped with flexible gear shift wire with 360° turnable steering design, which can match various implements, easy operation.

products details

5.4HP Multi Function Power Tiller

5.4HP Multi Function Power Tiller

The power tiller has the characteristics of light weight, small size and simple structure. It is widely used in dry land, paddy field and orchard in plains, mountains and hills. It is convenient for users to use and store, and avoid the trouble that large agricultural machinery can't enter the mountains.

The micro tillage machine has the following advantages:

1. Small size, light weight, convenient operation, saving time and effort when working;

2. Rugged and durable. The micro-tiller is a cast steel box, which has the advantages of good rigidity, no deformation, high precision, and long practical life;

3. Multi-functions, rotary tillage, deep tillage, ditching, ridge formation, intertillage weeding, sowing and fertilization, spraying, pumping, transportation and many other agronomics. The micro tillage machine has truly realized one machine with multiple functions, spending the same money, and doing multiple thing;

4. Good economic performance, reasonable transmission ratio, 10% energy saving than traditional tiller under the same working environment;

5. The width of the wheel is adjustable, the handle is up and down, and the left and right are adjustable, which can be suitable for different working environments;

6. Practical scope-greenhouses, mountainous hills, dry land, paddy fields, etc.

Technical parameters

Main Parameter Value
Matched power 4 kw
Weight 75 kg
Overall dimension 1540×910×930 mm
Economical fuel consumption 6.8-8.8 L/acre
Working width 1000 mm
Tilling depth 100-150 mm
Working speed 1.5-2.9 km/h
Efficiency 0.2-0.4 acre/h
