Paddy Rice Combine Harvester
-
Adopt mature technology and structure, 70% parts are interchangeable with Kubota harvester, easy for maintenance.
Increased heat dissipation, waterproof and dustproof technology, suitable for harsh working conditions.
Equipped with grain unloader, larger fuel tank and barn, higher operating efficiency.
Built-in chassis lifting system, better paddy field passability.
products profile
1. The mainstream technology and structure ensure the machine excellent performance, high efficiency, and reliability;
2. Equipped with a diesel engine with 65kW power, it is full of power and capable of harsh working environment;
3. Equipped with a two-meter header and a 550mm wide feeder give it large feeding capacity, and not easy to block in the feeder.

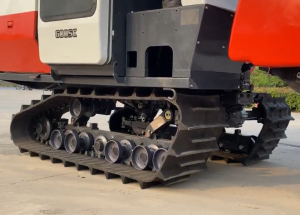

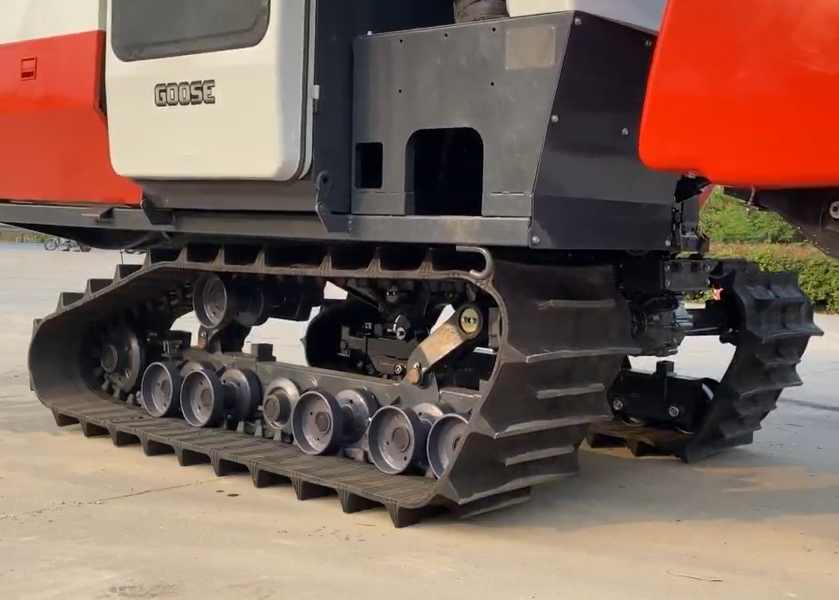

4. Equipped with a 500mm crawler helps the growth of crops and the continuous high yield due to low compaction of field.
5. It’s able to provide two kinds of ground clearance, 275mm and 385mm, which greatly improves the high passing ability and adaptability.
6. Equipped with large displacement HST can provide greater torque, which makes it being able to cope with various adverse working conditions;
7. A large radiator area for stable engine performance which brings it excellent operation quality;
8. 1.4m3 large-capacity grain bin reduces the frequency of unloading grain to save time;
9. 110 liter-capacity of large fuel tank for longer and more continuous operation hours;
10. 24V starting voltage improves engine starting performance and reduces starting faults;
11. “One-button for starting” greatly improves the reliability of electric starting for rainy season operation and avoids maloperation.
12. Industrial standardized parts supply resources for easy maintenance, and repair of the whole machine.
13. With the choice of an optional fan on the feeder
14. With the choice of an optional corn header
products details

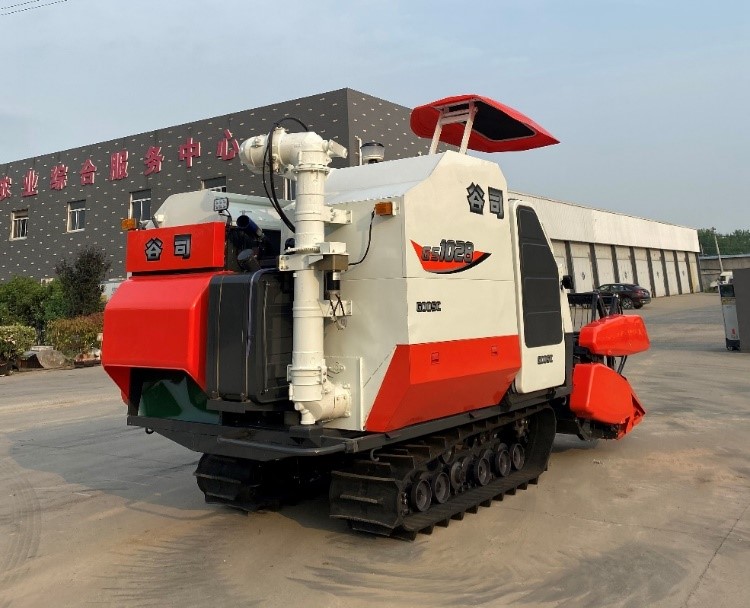

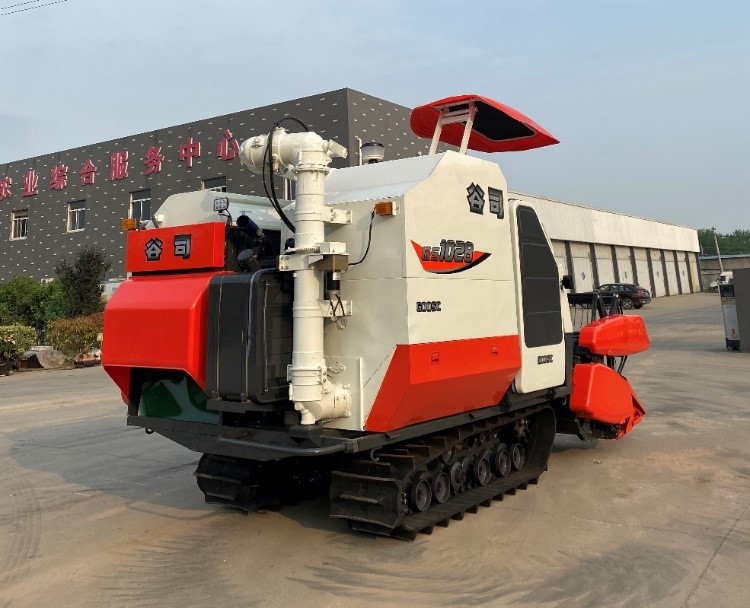

Paddy Rice Combine Harvester
Paddy Rice Combine Harvester
The grain combine harvester is mainly used for the combined harvest of wheat crops. In the field, cutting, threshing, separation and cleaning can be completed at one time. When used for segmented harvesting, a crop picker is installed on the harvesting table to pick up the dried grain strips and complete the operations such as threshing, separation and cleaning. When adding auxiliary devices to the grain combine harvester (such as soybean low-cutting device, etc.). Or after proper modification and adjustment, cereal crops such as rice, corn, soybeans, millet and sorghum can be harvested.
Technical parameters
| Model | GS1028 | ||
| Dimension | Overall length in working condition （mm） | 5010 | |
| Overall width in working condition （mm） | 2650 | ||
| Overall Height in working condition （mm） | 2815 | ||
| Weight (kg) | 3380 | ||
| Engine | Model | Changchai 4L88 | |
| Type | Water-cooled 4 Cylinder Turbocharged Vertical Diesel, complying with China 2-stage emission standard. | ||
| Rated power（kW） | 65 | ||
| Rated speed（r/min） | 2600 | ||
| Fuel Tank Capacity(L) | 110 | ||
| Drive System | Crawlers | Track Gauge（mm） | 1150 |
| Width x Ground Contact Length(mm) | 500x 1710 | ||
| Ground Clearance（mm） | 275~385 | ||
| Transmission | Type | HST + Mechanical Transmission | |
| Gear shifting | 3-Range (3F/3R) | ||
| Speed in theory（m/s） | Low: 0-0.97 | ||
| Medium: 0-1.37 | |||
| High: 0-1.85 | |||
| Steering | Clutch and Brake | ||
| Cutting header | Gathering length(mm) | 2000 | |
| Pickup reel diameter x width (mm) | 900 x1903 | ||
| Min. Cutting Height （mm） | 40 | ||
| Threshing/Separating | Threshing type | Tooth +Axial Flow | |
| Threshing cylinder | Diameter x Length （mm） | Φ620×1790 | |
| Revolutions (rpm) | 560 | ||
| Cleaning type | Cleaning type | 3- Way Air Stream Cleaning System | |
| Grain Tank | Capacity（L） | 1400 | |
| unloader | Grain Discharge Height Range (mm) | 800～3800 | |
| Turning Angle of Grain Unloader (degree) | 270 | ||
| Work efficiency | 0.2-0.4 Ha/h | ||
| Adapting to crop | Rice 、wheat | ||
