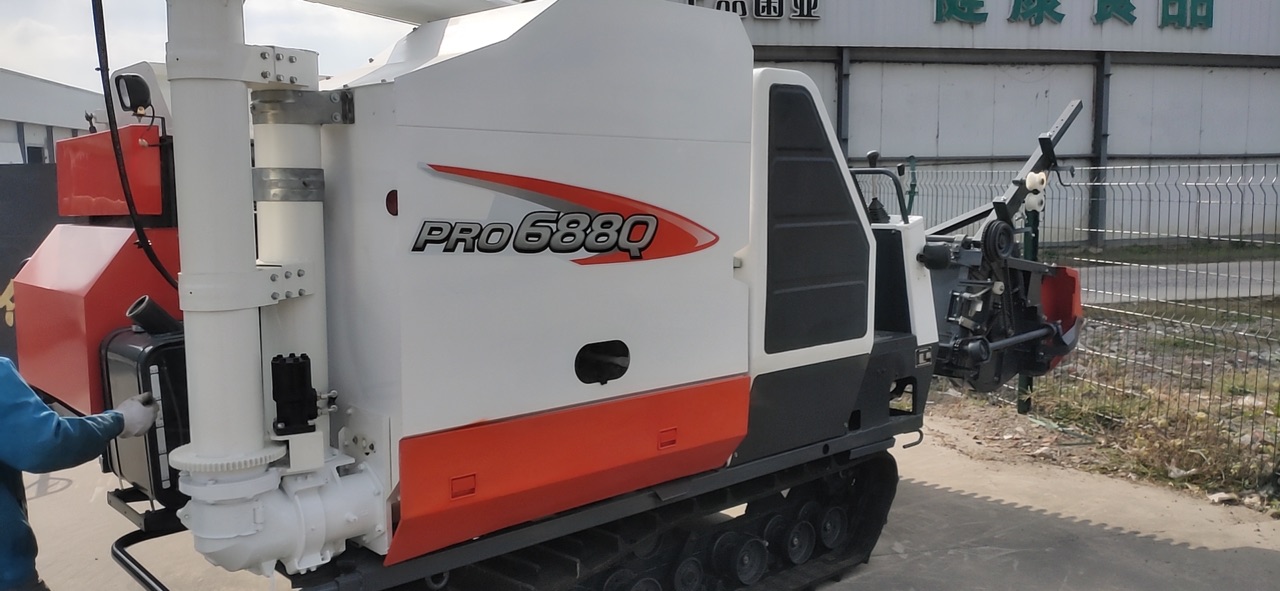

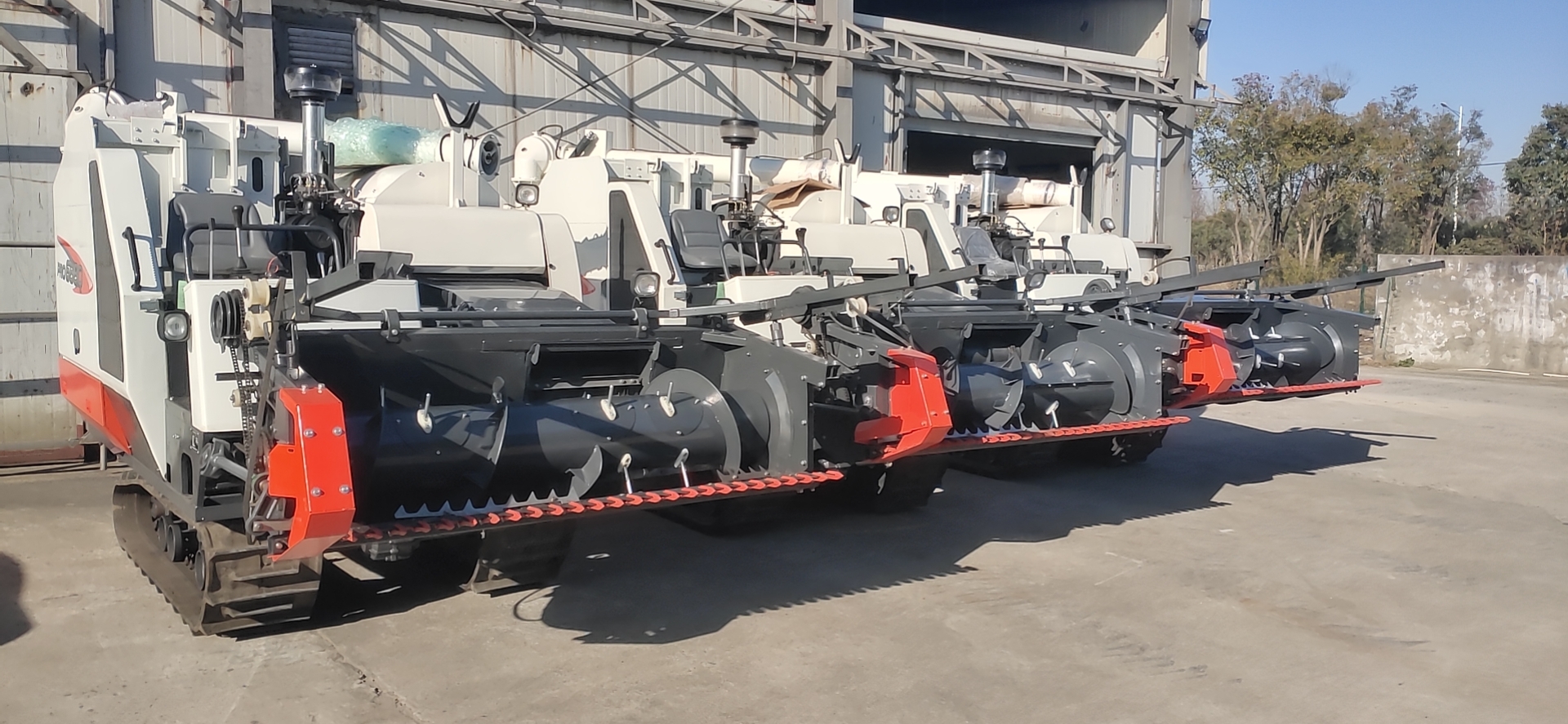

Combine Rice Harvester PRO 688Q
Combine Rice Harvester PRO 688Q
The grain combine harvester is mainly used for the combined harvest of wheat crops. In the field, cutting, threshing, separation and cleaning can be completed at one time. When used for segmented harvesting, a crop picker is installed on the harvesting table to pick up the dried grain strips and complete the operations such as threshing, separation and cleaning. When adding auxiliary devices to the grain combine harvester (such as soybean low-cutting device, etc.). Or after proper modification and adjustment, cereal crops such as rice, corn, soybeans, millet and sorghum can be harvested.
Technical parameters
| Model | PRO 688Q | ||
| Dimension | length （mm） | 5010 | |
| width （mm） | 2650 | ||
| Height （mm） | 2815 | ||
| Weight ( kg ) | 2790 | ||
| Engine | Model | V2403-M-DI-T-ET04 | |
| Type | Water-cooled 4-Cycle 4-Cylinder Turbocharged Vertical Diesel | ||
| Rated power（kW） | 49.2 | ||
| Rated speed（r/min） | 2700 | ||
| Fuel Tank Capacity(L) | 60 | ||
| Drive System | Crawlers | Track Gauge | Rubber lug wheel with thick rim |
| Width x Ground Contact Length(mm) | 450 x 1680 | ||
| Size pitch（mm）×note numbers×width（mm） | 90×51×450 | ||
| Minimum Ground Clearance（mm） | 275 | ||
| Transmission | Type | Mechanical Transmission +HST | |
| Gear shifting | 3-Range (3F/3R) | ||
| Traveling Speed in theory（m/s） | Low: 0-0.97 | ||
| Medium: 0-1.37 | |||
| High: 0-1.85 | |||
| Steering | Clutch and Brake | ||
| Cutting header | Gathering length(mm) | 2000 | |
| Pickup reel diameter x width (mm) | 900 x1828 | ||
| Mix.cutting Height Range（mm） | 40 | ||
| Threshing/Separating | Threshing type | Spiked Tooth Axial Flow | |
| Threshing cylinder | Diameter x Length （mm） | Φ620×1790 | |
| Revolutions (rpm) | 560 | ||
| Cleaning type | Cleaning type | Oscillating • 3 Way Air Stream Cleaning System | |
