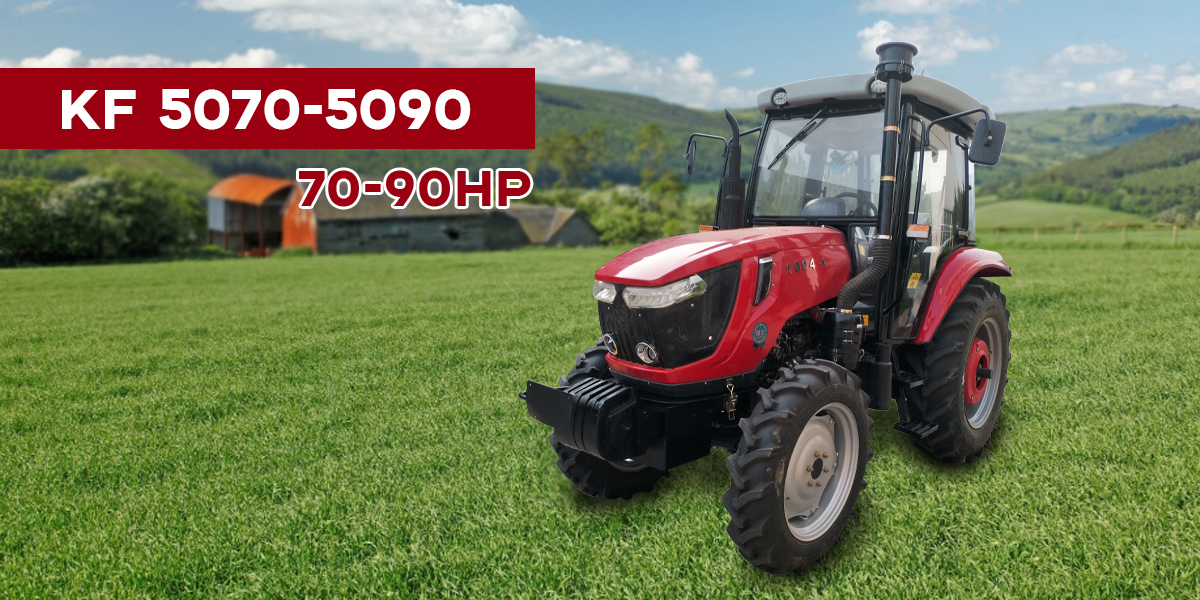

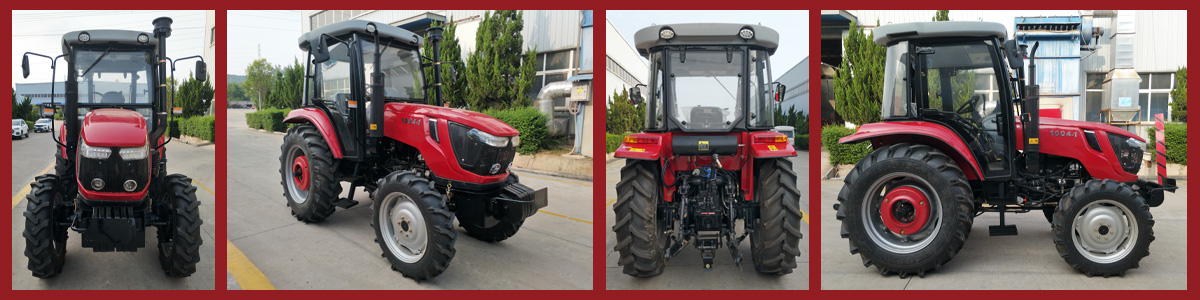

70HP Agriculture Farm Tractor KF 5070
-
70HP Agriculture Farm Tractor KF 5070 offers the power and the adaptability to cover workload with ease.
Equipped with YTO engine.12F+12R gearbox and live PTO.
Suitable for a wide range of applications, from agriculture operations and grounds maintenance to industrial and construction site.
products profile
- YTO engine is assembled to provide high horse power along with low fuel consumption and strong power;
- Enhanced paddy front axle with smaller turning radius, being flexible and reliable.A live PTO fulfills rotary, harvesting, planting, fertilizing, etc.;
- Double fuel tank and powerful traction can match with large agricultural machinery;
- Tilling depth can be controlled efficiently.
products details
70HP Agriculture Farm Tractor KF 5070
70HP Agriculture Farm Tractor KF 5070 offers the power and the adaptability to cover workload with ease.Equipped with YTO engine.12F+12R gearbox and live PTO.Suitable for a wide range of applications, from agriculture operations and grounds maintenance to industrial and construction site.

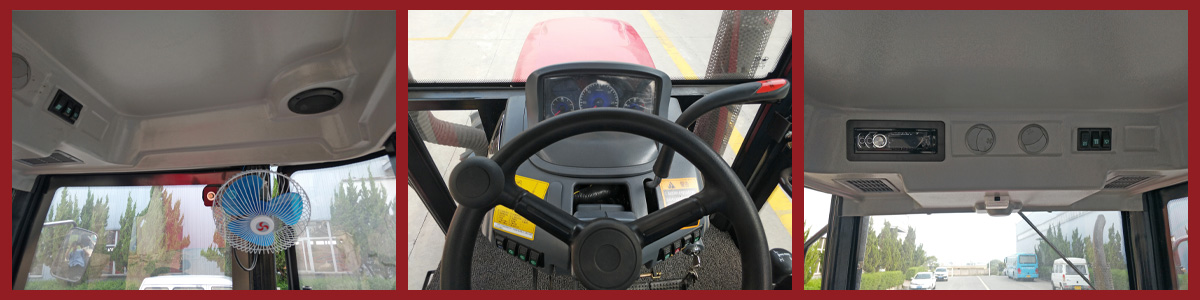

SJH 70HP Agriculture Farm 5070 Tractor's LCD display instrument is beautiful and atmospheric.
Keeping track of the vehicle condition at any time, and the information is clear and accurate.
Comprehensive adjustment of force and position.Floating control suspension.
The KF 70HP Agriculture Farm 5070 Tractor's has strong power, low fuel consumption, comfortable driving and high efficiency.
The key components are fully upgraded, which is more suitable for deep plowing operations.
Technical parameters
| Model | KF 5070 | KF 5075 | KF 5080 | KF 5090 | KF 5100 | |
| Drive Type | 4080 (L) | |||||
| Overall dimension (mm) | 1900 (W) | |||||
| 2740 (Sunroof) | ||||||
| Min.Ground Clearance (mm) | 400 (to transfer case) | |||||
| Wheel Tread (mm) | Front | 1450 | ||||
| Rear | 1530 | |||||
| Structure Weight (kg) | 2900 | |||||
| Counter weight (kg) | Front | 220 | ||||
| Rear | 300 | |||||
| Engine | Model | YT4B4-22 | LR4B5-23 | LR4M5-23 | LR4V5-23 | |
| Cylinders | 4 | |||||
| Rated Power (kW) | 51.5 | 55.1 | 59 | 66.2 | 69.4 | |
| Rated Speed (rpm) | 2200 | 2300 | 2300 | 2300 | 2300 | |
| Max traction force (kN) | 15 | 16 | 17 | 19 | 20 | |
| Max PTO power (kW) | 46.4 | 49.5 | 53.1 | 59.5 | 62.5 | |
| Tyre | Front | 8.3-24 | ||||
| Rear | 14.9-30 | |||||
| Gearbox | 10F+10R | |||||
| Speed (km/h) | 3.06 ～ 31.49 | |||||
