5.9HP Multi Function Power Tiller
-
Function: Rotary tllage, Weeding, Paddy field mixing, Ridging, Ditching, Soil cultivation, etc.
Application: Paddy fields, Slopes, etc.
products profile

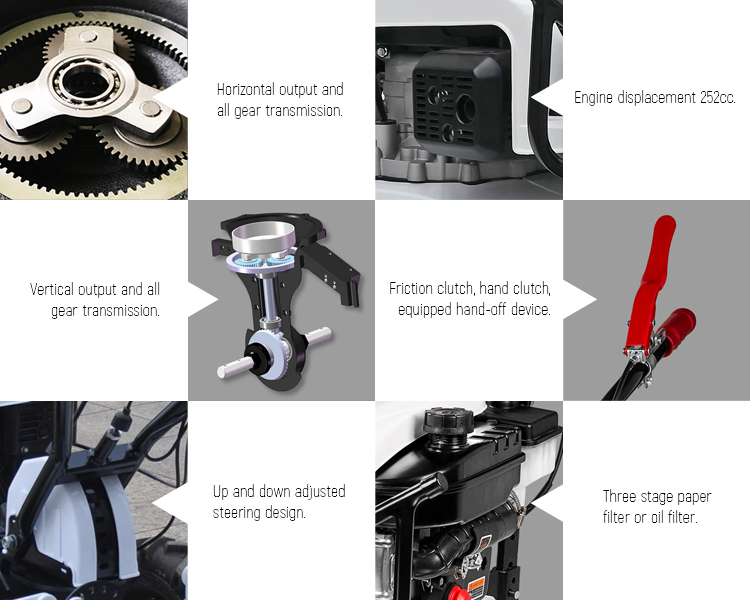

1. Special power for micro tillage machine, displacement252CC, The power is stronger;
2. The new top-mounted oil bath type three-stage filter,the filter stroke is lengthened, Filter cleanliness is higher;the elevated design of the air filter effectively preventsWater cr mud in the carburetar;
3. The new overhead fuel tank design ensures power supplywhen going uphill The flame does not turn off smoothly;
4. Newly- added diversion lubrication design inside thepower, effective anti-locking.
products details
5.9HP Multi Function Power Tiller
5.9HP Multi Function Power Tiller
The power tiller has the characteristics of light weight, small size and simple structure. It is widely used in dry land, paddy field and orchard in plains, mountains and hills. It is convenient for users to use and store, and avoid the trouble that large agricultural machinery can't enter the mountains.
The micro tillage machine has the following advantages:
1. Small size, light weight, convenient operation, saving time and effort when working;
2. Rugged and durable. The micro-tiller is a cast steel box, which has the advantages of good rigidity, no deformation, high precision, and long practical life;
3. Multi-functions, rotary tillage, deep tillage, ditching, ridge formation, intertillage weeding, sowing and fertilization, spraying, pumping, transportation and many other agronomics. The micro tillage machine has truly realized one machine with multiple functions, spending the same money, and doing multiple thing;
4. Good economic performance, reasonable transmission ratio, 10% energy saving than traditional tiller under the same working environment;
5. The width of the wheel is adjustable, the handle is up and down, and the left and right are adjustable, which can be suitable for different working environments;
6. Practical scope-greenhouses, mountainous hills, dry land, paddy fields, etc.
Technical parameters
| Main Parameter | Value |
| Matched power | 4.4 kw |
| Weight | ≈53 kg |
| Overall dimension | 1450×710×970 mm |
| Economical fuel consumption | 6.6-7.8 L/acre |
| Tilling width | 350- 900mm |
| Tilling depth | 100- 180mm |
| Working speed | 1.8-2.8Km/h |
| Efficiency | 0.18-0.36acre/h |
